WH64 User Guide
If the models below do not match the one you are trying to setup, please see the WH63 User Guide or WH62 User Guide

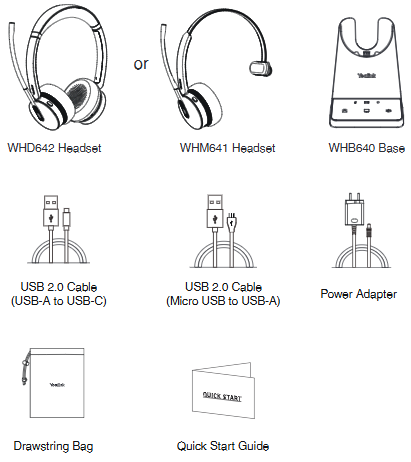

Package Contents

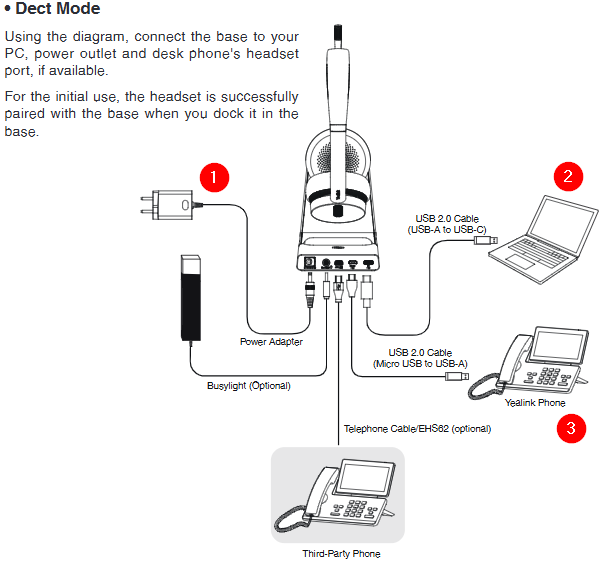

How to Connect the WH64
- Power cable connection
- Please make sure you connect the base to a DC power supply if at all possible
- It can be powered via the USB to Computer connection if necessary
- Connect the Headset Base to the Computer (or docking station) with the USB C to USB A Cable
- Must be connected to adjust settings via Yealink USB Connect
- Connect the Headset Base to a Yealink Phone with the Micro USB to USB A cable

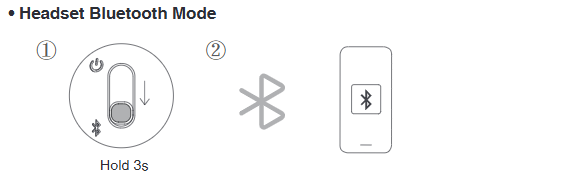

The Headset can only connect to 1 Bluetooth device at a time.
Charging the Headset
It is recommended to fully charge the headset before using it for the first time.

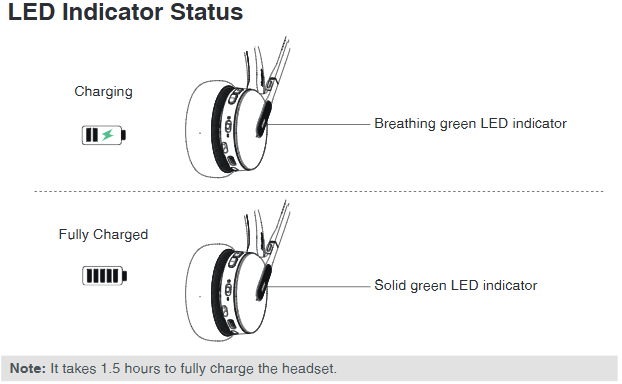

The light on the headset will slowly blink green to indicate it is charging.

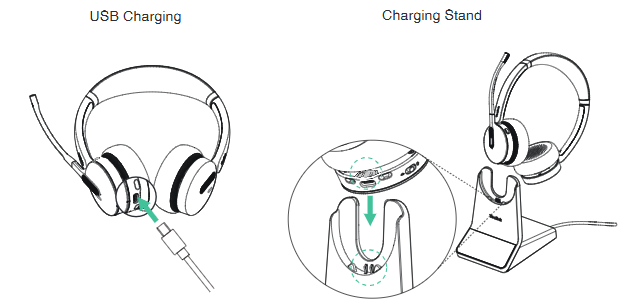

Charging Dock: Place the headset on the charging dock to charge.
Direct Charging: Connect a Type-C cable to charge the headset directly.

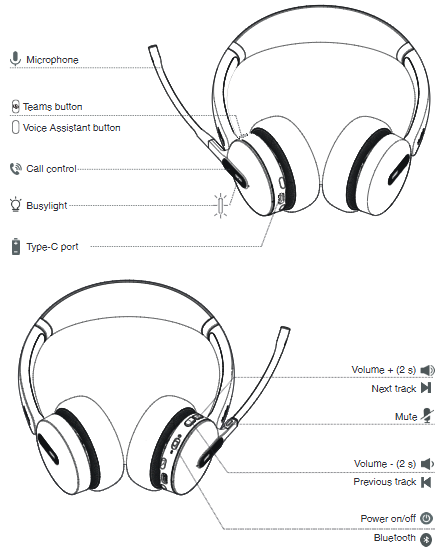

Headset Overview

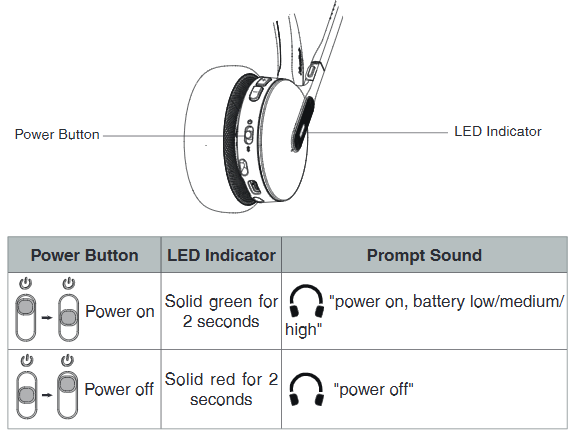

Power on / off

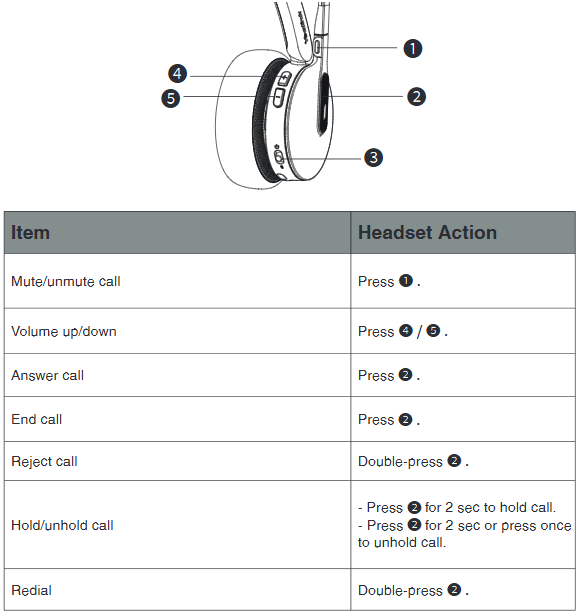

Call Control

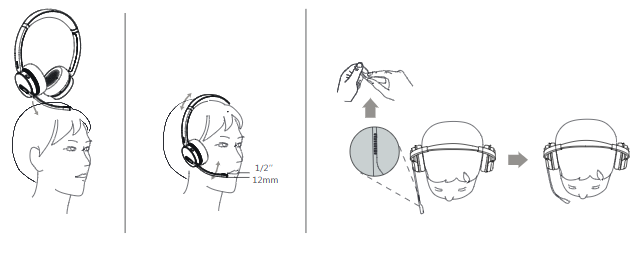

Wearing the Headset
The mono headset supports wearing on either the left or right ear.

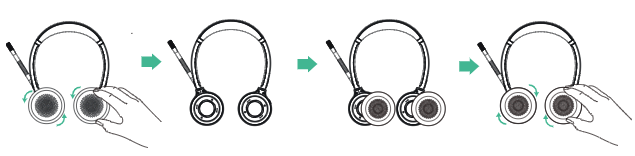

Replace Ear Cushions
Yealink USB Connect Management
Download the application here: Yealink USB Connect
