WH63 User Guide

WH63 User Guide


InfoIf the model below does not match the one you are trying to setup, please see the WH62 User Guide

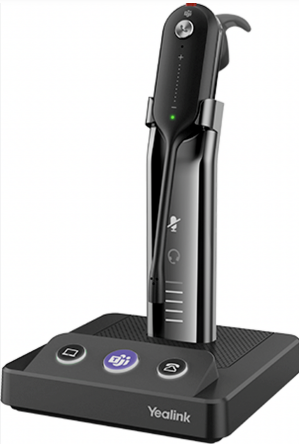

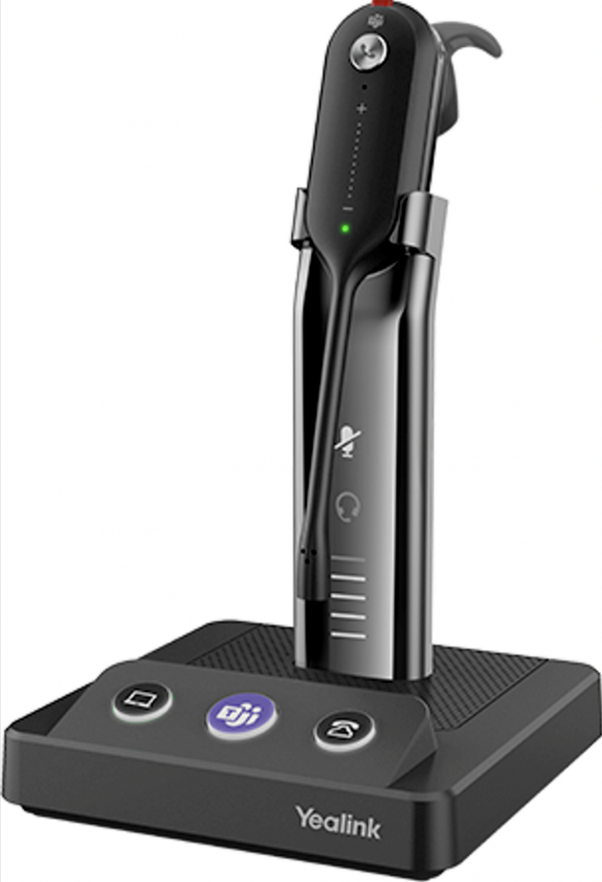

WH63

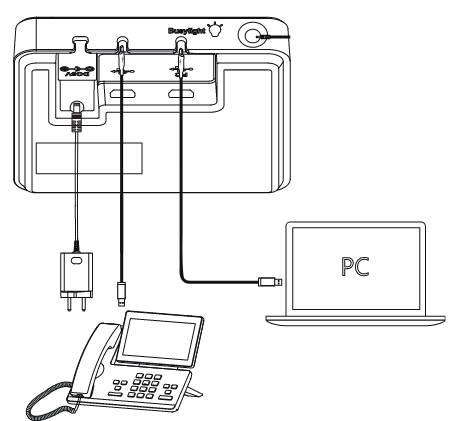

How to Connect the WH63

There are 2 connections (and the power cable) that can be connected with this device.


  1. Power cable connection
    1. Please make sure you connect the base to a DC power supply if at all possible. It can be powered via the USB to Computer connection if necessary.
  2. USB to Phone connection
  3. USB to Computer connection
    1. Must be connected to adjust settings via Yealink USB Connect

They have a label where they need to plug in at, but just in case, reference the picture above to see which connection goes to which location.

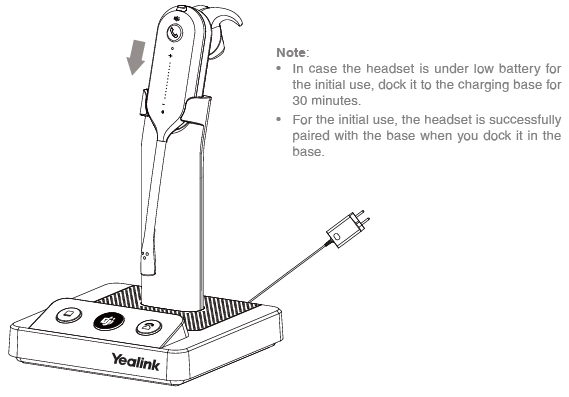

Charging the Headset



For the first use, it is recommended to charge the headset for at least 30 minutes.

To charge it simply slide the headset into the dock and confirm the light slowly blinks green to indicate it is fully seated in the dock as pictured above.

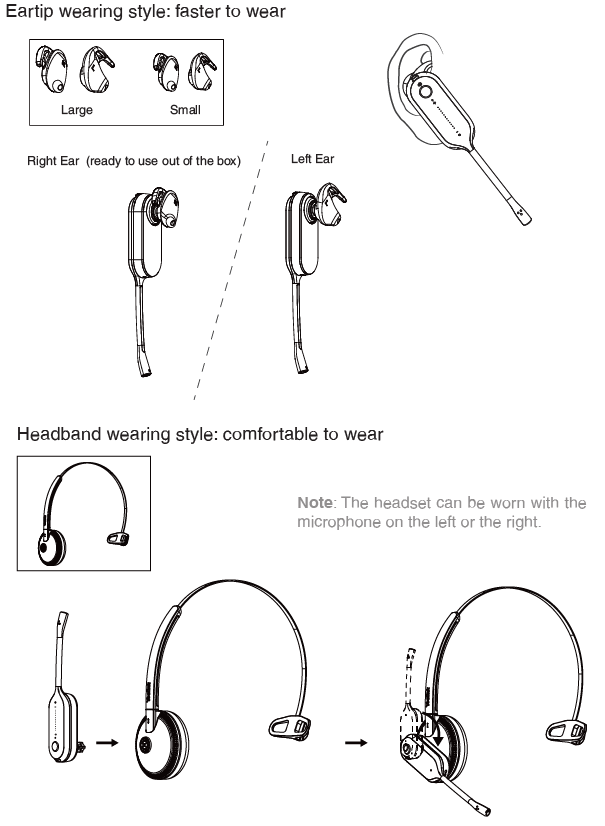

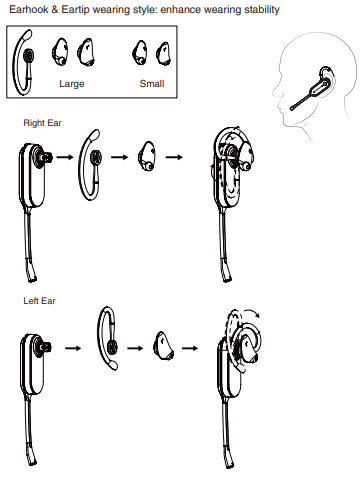

Headset Wearing Styles



This headset comes with the ability to set up just the eartip to seat comfortably in your ear, a headband that goes over the head, an ear clip that goes around the ear, or a neckband that goes around your head.

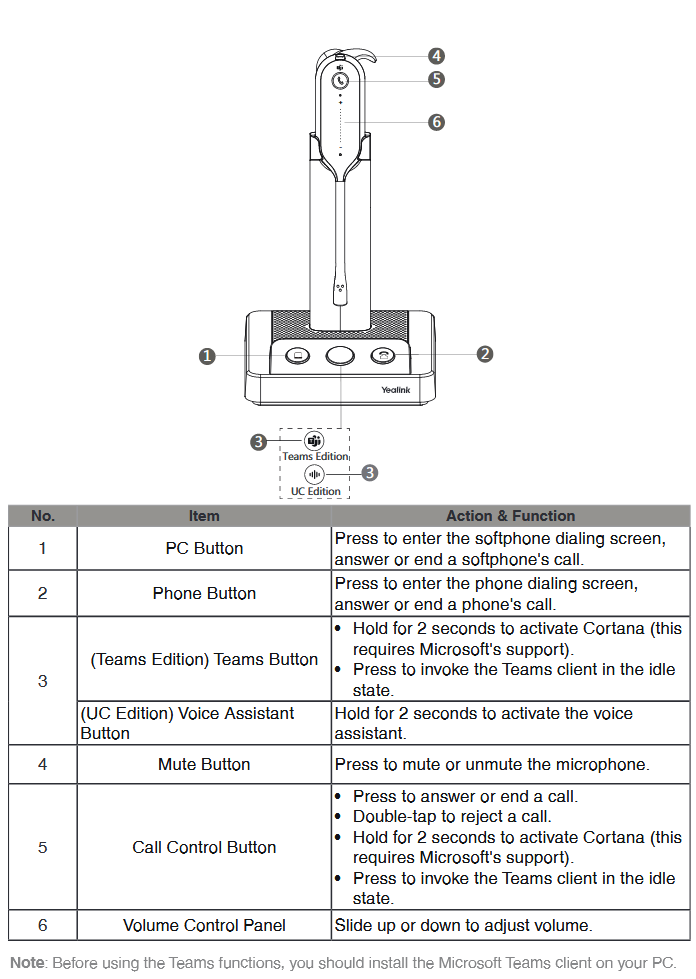

Buttons / Functions

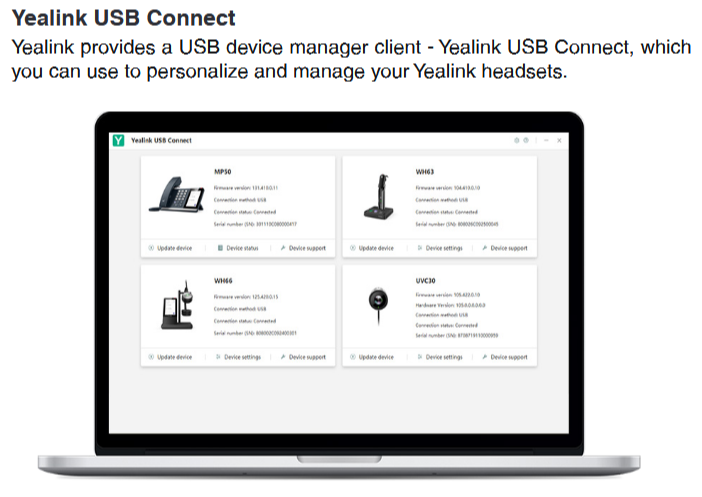

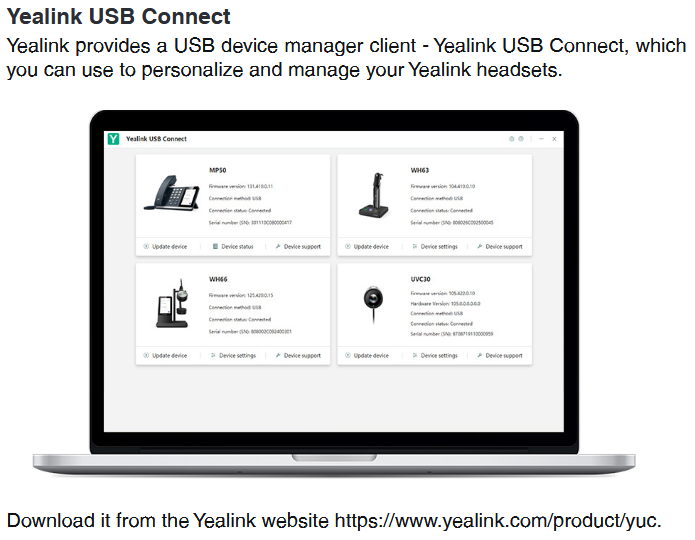

If you connect your headset to your computer, you can manage the headset and change some of the features and how it rings.
Download the application here: Yealink USB Connect
