WH62 User Guide

WH62 User Guide

If the models below do not match the one you are trying to setup, please see the WH63 User Guide

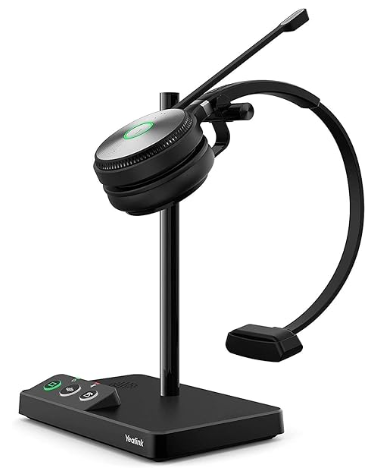

WH62 MONO

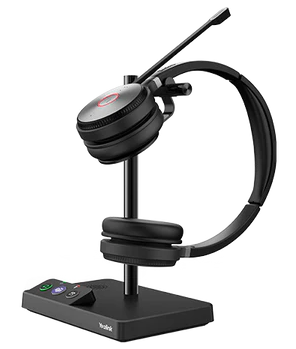

WH62 DUAL

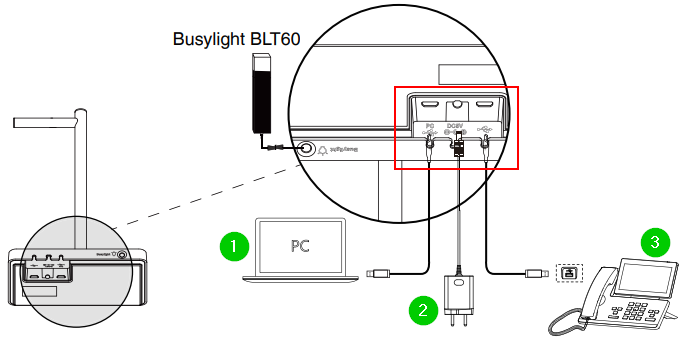

How to Connect the WH62

There are 2 connections (and the power cable) that can be connected with this device.


  1. USB to Computer connection
    1. Must be connected to adjust settings via Yealink USB Connect
  2. Power cable connection
    1. Please make sure you connect the base to a DC power supply if at all possible. It can be powered via the USB to Computer connection if necessary.
  3. USB to Phone connection

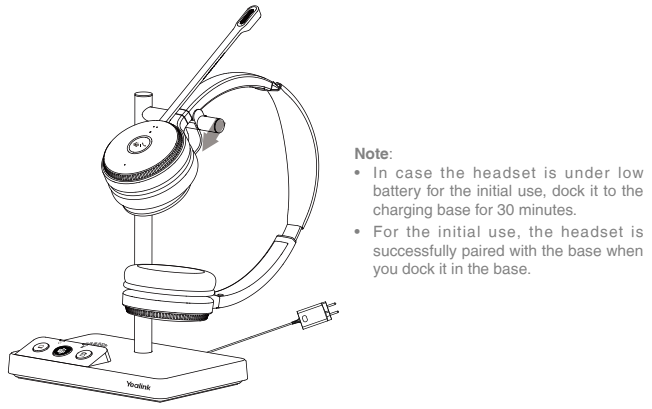

Charging the Headset




For the first use, it is recommended to charge the headset for at least 30 minutes.

To charge, simply dock the headset onto the base and confirm it is fully seated in the dock as pictured above.
The light on the headset will slowly blink green to indicate it is charging.

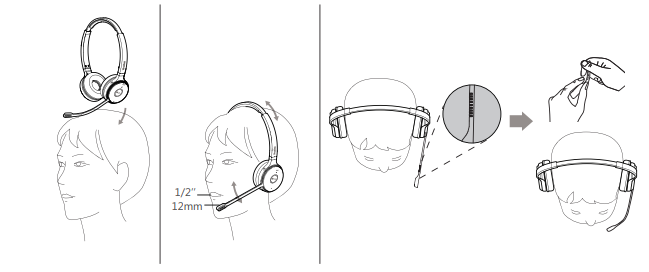

Wearing the Headset

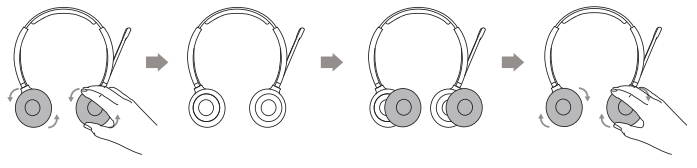

Replace Ear Cushions

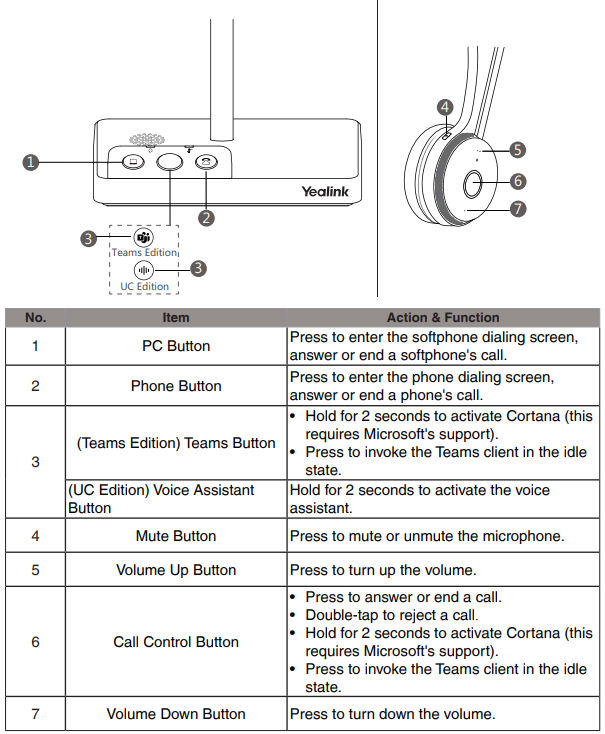

Buttons & Their Functions

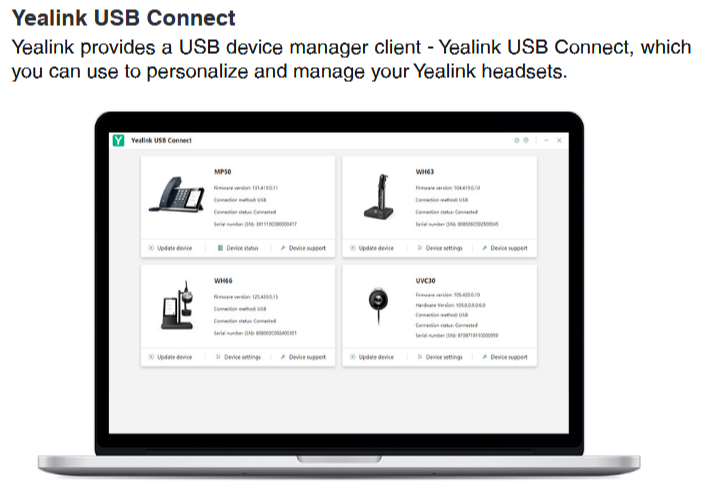

Download the application here: Yealink USB Connect
