AT&T BGW320 Connections & Light Status

AT&T BGW320 Connections & Light Status

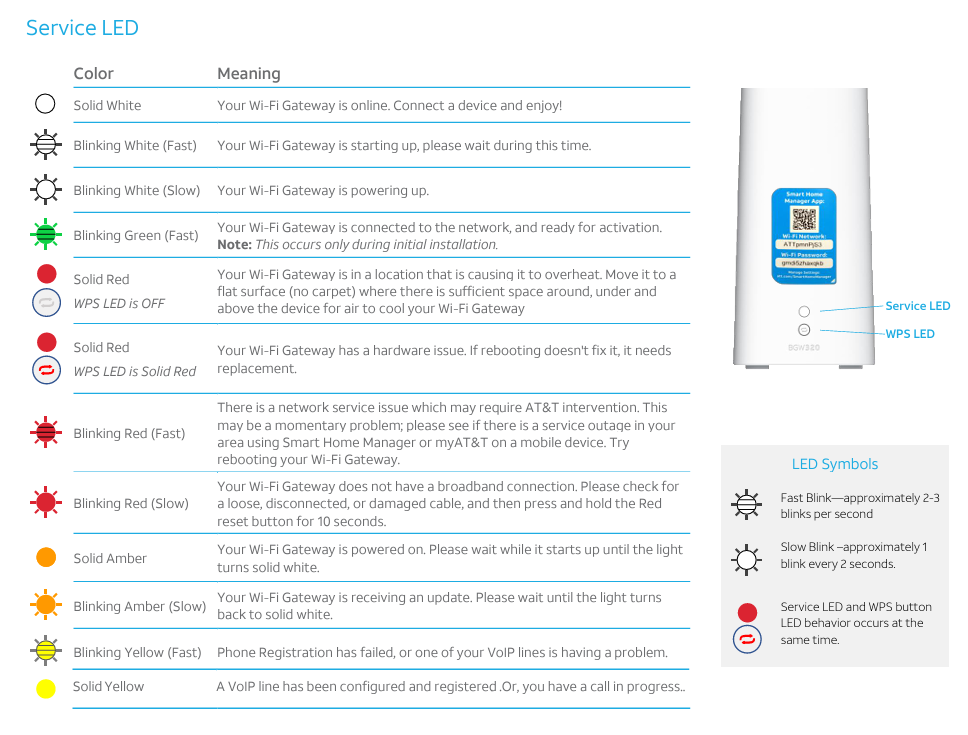

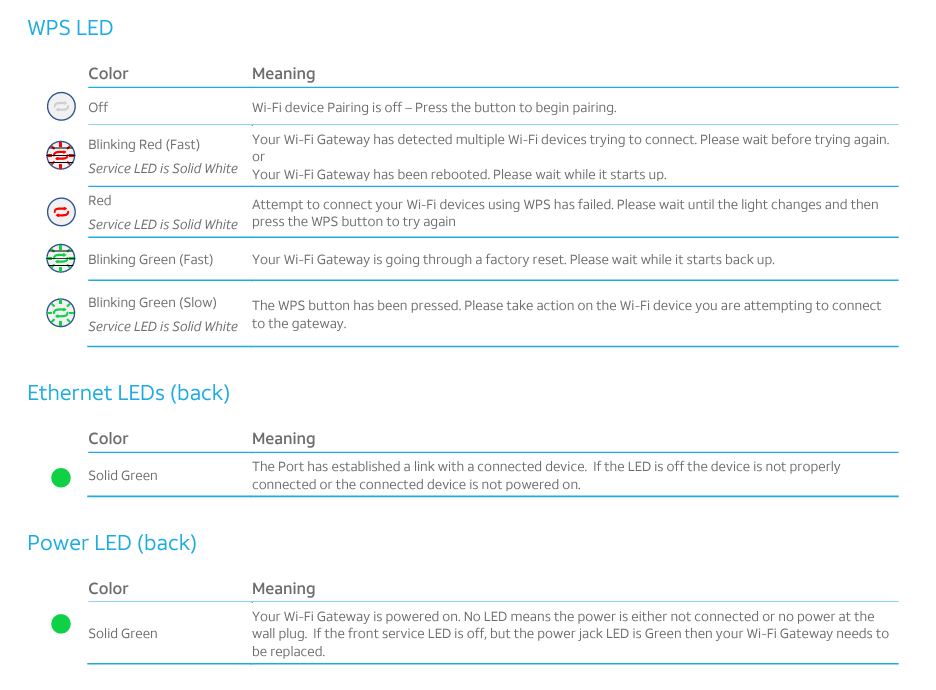

AT&T BGW320 LED Information -Customer

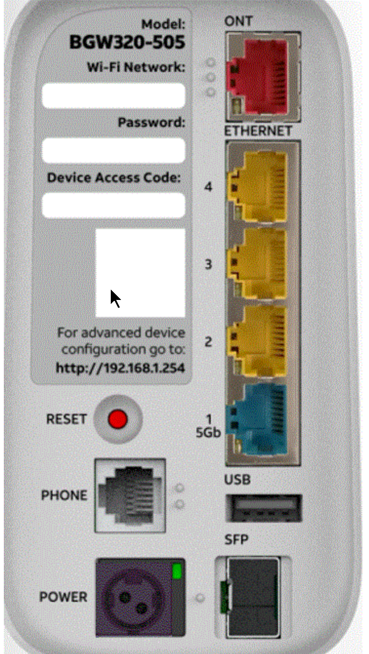

Connections

LAN

  1. Ports
    1. There are 4 ports, a single 5Gb port and three (3) 2.5Gb ports
  2. Cabling
    1. CAT6 or CAT6a cabling is recommended
  3. Support above 1Gb
    1. Most devices will only support 1Gb connections, but some newer devices support 2.5Gb Ethernet and above
  4. Support above 2.5Gb
    1. You will almost always need to connect to a SFP+ port using a RJ45 adapter

    AT&T-use Only

    1. SFP
      1. Fiber connection used to uplink to AT&T's fiber network using a SFP+ connector, typically connected to LC fiber connectors.
    2. ONT
      1. Ethernet connection used to uplink to AT&T equipment.




    BACK
